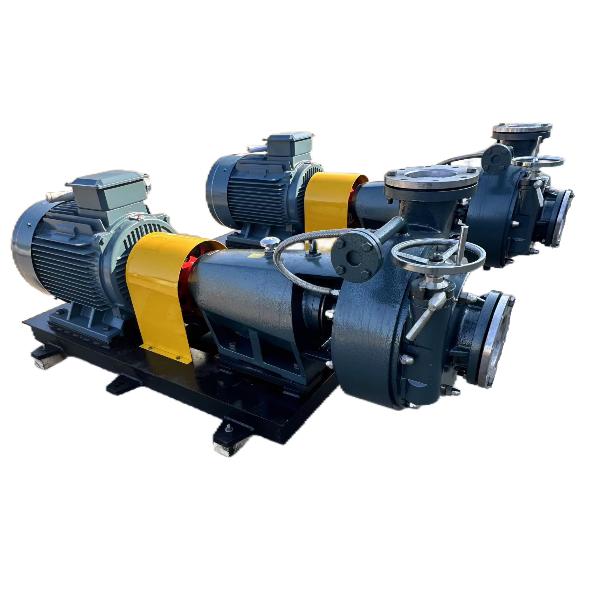

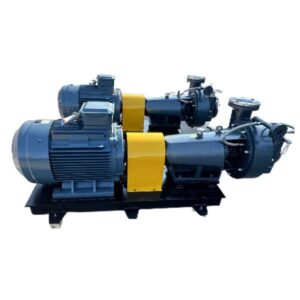

JZQ Chemical Grinding Pump

JZQ Chemical Grinding Pump

Under normal operation, there is no pressure in the sealing chamber, which ensures the reliability of the seal and almost no leakage during use.

JZQ Homogenizer Performance Range:



Flow 20-60m³/h Import/Export Parameters 150/150mm

Outlet Pressure 0.2MPa Max. Allowable Pressure 0.4MPa

Speed 1480rpm Max. Allowable Temperature 300℃

Motor Power 132kW Gap Adjustment Manual

Transmission Mode Clutch Break Indicator Scale

JZQ homogenizer is a wet shear mixing equipment developed by our company based on similar foreign products and based on the market. This equipment uses cutting action to grind and distribute the flow evenly. The materials need to be crushed and ground at high speed through the colloid. Two processes and multiple shears have greatly improved the modification effect and working efficiency. It uses a flat grinding body, there is flexible interaction between the stator and rotor, and the grinding force is strong. The technology level and quality of the product have reached the advanced level. similar foreign products.

Features of JZQ homogenizer:

  1. The gap between the rotor and stator of JZQ homogenizer is 6-100μm (adjustable).
  2. The grinding chamber of JZQ homogenizer is equipped with a heat-insulating casing.
  3. The linear speed of the rotor of JZQ homogenizer can reach 54m/s.
  4. The minimum size of JZQ homogenizer is 0.1μm.
  5. The working temperature of JZQ homogenizer is 300℃
  6. The shaft seal uses a specially designed composite seal, and the seal cavity is specially designed for JZQ type homogenizer.
