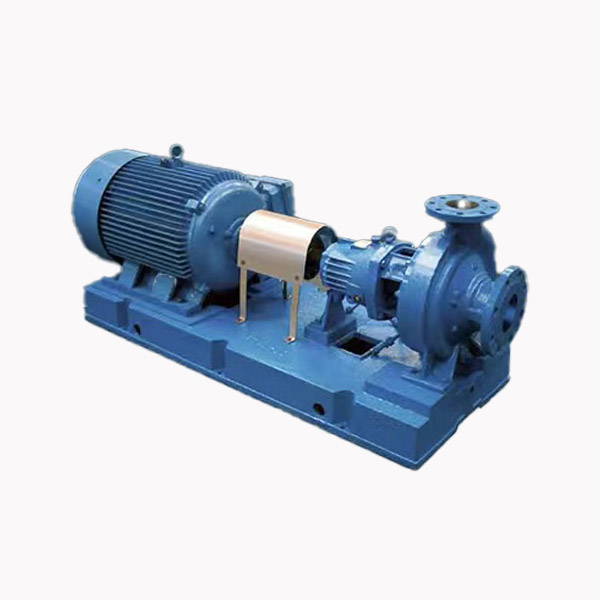

Introduction to Petrochemical Process Pump Type ZA:
Petrochemical process pumps type ZA are designed according to the specifications of API160 (6th edition) and VDMA24297 (light/medium).
Description of the structure of petrochemical process pump type ZA:
1.Petrochemical process pump type ZA is a single-stage, horizontal, radially split worm casing pump. The pump casing is supported by a foot, single suction radial impeller. Axial suction, radial discharge.
2.According to the different conditions of use, with front and rear sealing ring and balance hole for hydraulic balance. oil seal type za pump for petrochemical processes with cooling or heating pipe connections. The shaft seal adopts gland seal, or single-sided or double-sided mechanical seal can also be used. Equipped with a system for cooling, flushing or sealing the liquid.
3.The standard pipeline is designed according to API specification, and the rated pressure level of the suction pipe flange and the discharge pipe flange of ZA petrochemical process pump are the same.
4.The rotation direction of ZA petrochemical process pump: clockwise rotation from the prime motor side.
